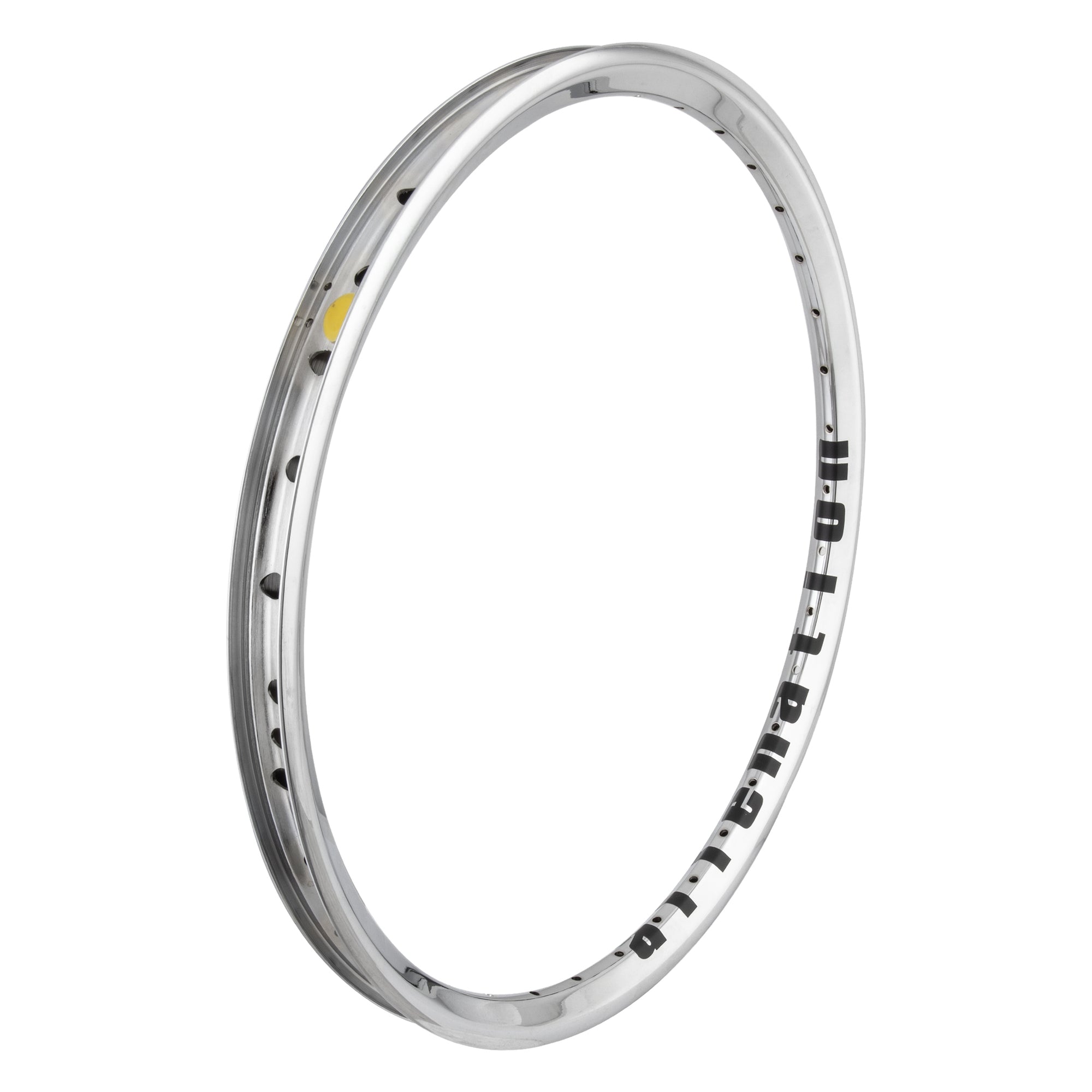

24" (507mm) Alienation Mischief G69 TSC 2.0 Front Double Wall BMX Rim - 36h - Silver

The Alienation Mischief uses the most advanced drilling pattern of any bicycle rim on the market today. A new 4D drilling process creates the optimal interface between spoke and rim. This exact angle reduces binding and the need for eyelets. The I-Beam is distinctive, centrally located vertical support counteracts spoke loads and provides torsional rigidity. Alienation's new G69 material is super light with superior strength. This rim is designed and drilled for 3 cross specifically - do not lace radially.

This is a front-specific rim. It can also be used with disc brakes on either the front or rear. This rim cannot be used with rim brakes.

TCS2.0 introduces a more robust, easily installed, and dependable tubeless system. A recessed channel along the center of the TCS rim allows installation off the all-new TCS nylon rim strip (included), which prevents tubeless tape from sagging at the spoke holes and results in a smooth, consistent interface between the tire and rim. Each TCS rim comes drilled for TCS and Schrader, with a valve plug for the unused valve hole. Tape and sealant are required for tubeless applications (NOT included).

Use: BMX Race – Front or Disc Only
Size: 24" (ISO 507mm)
Wall: Double
Drilling: 36H
Valve: SV
Internal Rim Width: 23mm
External Rim Width: 28mm
Rim Height: 19.5mm
ERD: 488mm
Posted Weight: 380g

Color: Silver (Polished w/ Clear Anodized Finish)
