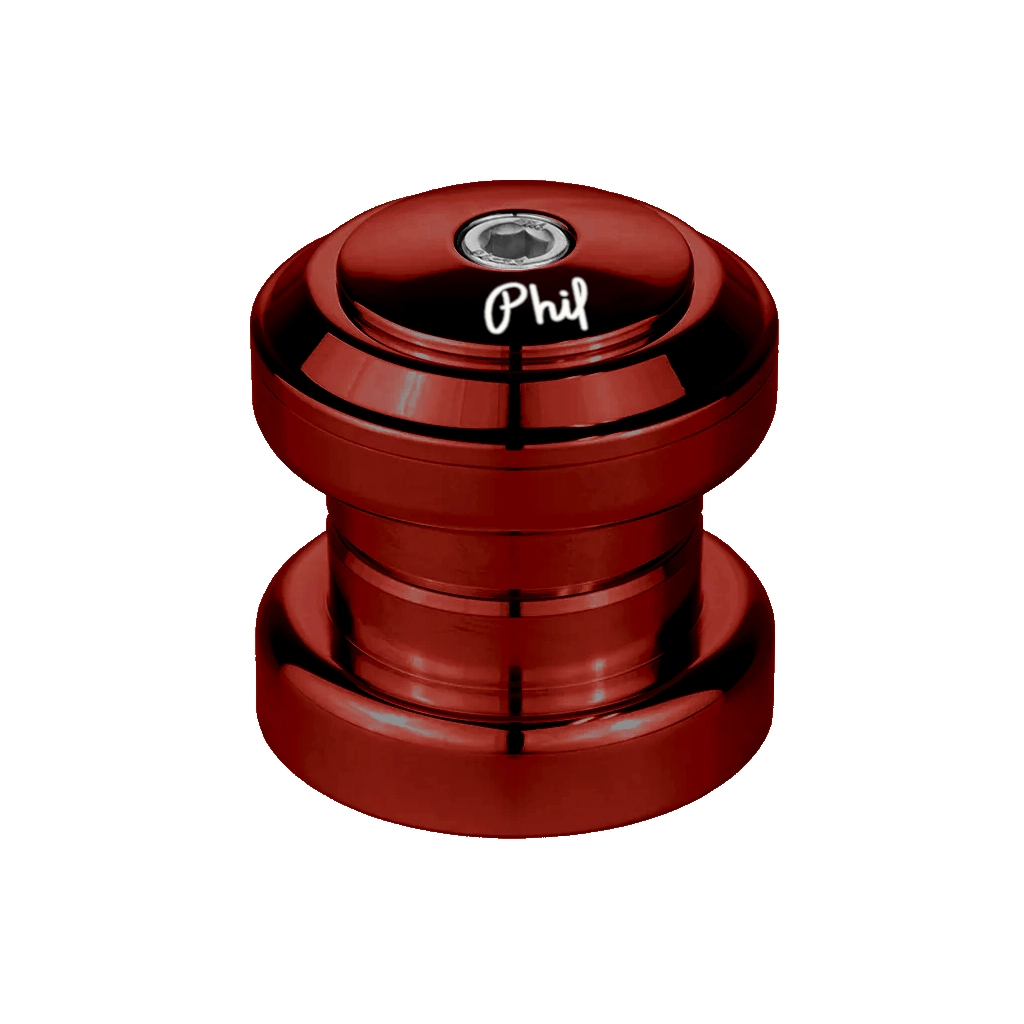

Phil Wood Sealed Standard 1-1/8" Threadless Headset - Red

$ 179.99

( / )
Unavailable

The Phil Wood headset development was inspired by the company's great customers who encouraged them to release a headset and helped duting years of testing and development. This headsert is  manufactured with US-produced stainless steel and 7075 aluminum. It is engraved with a script “Phil” into each stem cap and hand painted just like the Phil Wood hubs. Each headset is machined in-house to the same high quality standards applied to all of Phil Wood products.

This headset will fit frames with 34mm inner diameter head tubes and forks with a 30mm crown race.

Size: 1-1/8"
SHIS Upper and Lower: EC34 (34mm)
Steer Tube Diameter: 28.6
Crown Race: 30mm
Upper Stack Height: 15.5 mm
Lower Stack Height: 13 mm
Color: Anodized Red

Note: This part was colored by anodizing, which is a method of coloring metal. Color differences do occur among manufacturers and even among batches from the same manufacturer. This is not a flaw or imperfection, but it is inherent to the anodizing process. We make every effort to show accurate photos of products, but it is not possible to display every color variation. We are not responsible if a part doesn't match other items you own or is not the color you expected.
